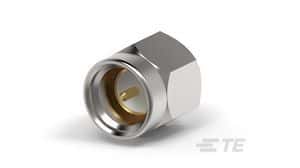

SMA Male RF connector, straight orientation, free hanging/cable mount. Features stainless steel body with gold plating, copper center contact with gold plating, and TFE dielectric. Operates from 0 to 18 GHz with 50 Ohm impedance and a voltage rating of 335V. Offers 500 mating cycles and a temperature range of -65°C to 105°C.
Frequency18GHz
PackageSMA
Voltage Rating335V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1050548-1 technical specifications.
General
Body Material
Stainless Steel
Body Plating
Gold
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Copper, Gold
Depth
7.9mm
Dielectric Material
TFE
ELV
Compliant
Frequency
18GHz
Gender
Male
Housing Color
Gold
Impedance
50R
Insulation Material
Tetrafluoroethylene
Lead Free
Not Applicable
Length
11.1mm
Mating Cycles
500
Max Frequency
18GHz
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 18 GHz
Orientation
Straight
Package Quantity
1
Packaging
Carton
Polarity
Normal
Radiation Hardening
No
RoHS Compliant
Yes
Series
SMA
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1050548-1 Datasheet
Download the complete datasheet for TE Connectivity 1050548-1 to view detailed technical specifications.
