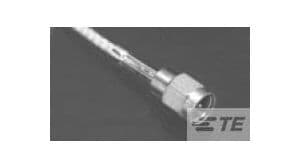

SMA Male RF connector, straight orientation, designed for cable mounting with solder termination. Features a stainless steel body with gold plating, copper center contact with gold plating, and PTFE dielectric for reliable performance up to 18 GHz. Offers 50 Ohm impedance, a voltage rating of 500V, and a mating cycle of 500. Operating temperature range from -85°C to 257°C.
Frequency18GHz
PackageSMA
Voltage Rating500V
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1050776-1 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| ELV | Compliant |
| Frequency | 18GHz |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Lead Free | Not Applicable |
| Length | 0.44inch |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 257°C |
| Min Operating Temperature | -85°C |
| Mount | Cable |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1050776-1 Datasheet
Download the complete datasheet for TE Connectivity 1050776-1 to view detailed technical specifications.
