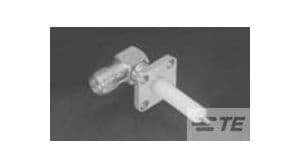

Right-angle, female RF coaxial connector with a 50 Ohm impedance, designed for operation from 0 to 18 GHz. Features a stainless steel body with passivation, gold-plated copper center contact, and PTFE dielectric. This panel-mount connector offers a maximum operating temperature of 257°C and a voltage rating of 335V, with a mating cycle rating of 500.
Frequency18GHz
PackageSMA
Voltage Rating335V
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1052982-1 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Passivated |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 12.7mm |
| Dielectric Material | PTFE |
| ELV | Compliant |
| Frequency | 18GHz |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Length | 11.1mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 257°C |
| Min Operating Temperature | -85°C |
| Mount | Panel |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Right Angle |
| Package Quantity | 250 |
| Packaging | Carton |
| Polarity | Normal |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Solder |
| Voltage Rating | 335V |
Compliance
| RoHS | Compliant |
