RF Coaxial Adapter, SMA Male to SMA Male, 50 Ohm impedance, operating frequency up to 18 GHz. Features stainless steel body, gold-plated copper center contact, and TFE dielectric. Designed for free-hanging, straight mounting with a compression termination. Rated for 500 mating cycles and operates from -65°C to 105°C.
Frequency18GHz
PackageSMA
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1053635-1 technical specifications.
General
Body Material
Stainless Steel
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
7.9mm
Dielectric Material
TFE
ELV
Compliant
Frequency
18GHz
Gender
Male
Gender Type A
Male
Gender Type B
Male
Impedance
50R
Insulation Material
Tetrafluoroethylene
Lead Free
Lead Free
Length
22.2mm
Mating Cycles
500
Max Frequency
18GHz
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Number of Contacts
1
Number of Positions
1
Operating Frequency
0 to 18 GHz
Orientation
Straight
Packaging
Bag
Plating
Passivated
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Termination
COMPRESSION
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1053635-1 Datasheet
Download the complete datasheet for TE Connectivity 1053635-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

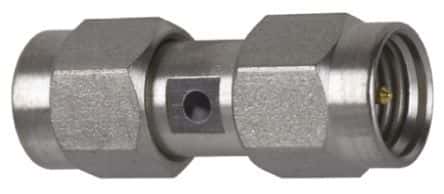

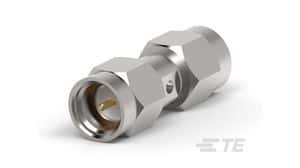

Product Images
