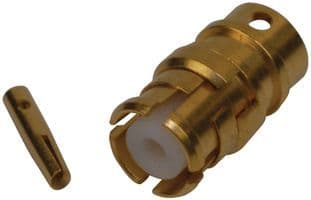

RF coaxial connector, straight cable mount, 50 Ohm impedance, operating frequency 0 to 40 GHz. Features copper body with gold plating, gold-plated copper center contact, and TFE dielectric. Rated for 335V, with a temperature range of -65°C to 165°C. Solder termination, shielded design, and sealable for robust performance.
Frequency40GHz
PackageSMD/SMT
Voltage Rating335V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1056527-1 technical specifications.
General
Body Material
Copper
Body Plating
Gold
Package/Case
SMD/SMT
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
TFE
ELV
Compliant
Features
Shielded
Housing Color
Gold
Impedance
50R
Lead Free
Not Applicable
Length
6.35mm
Max Frequency
40GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Contacts
1
Number of Positions
1
Operating Frequency
0 to 40 GHz
Orientation
Straight
Outside Diameter
4.19mm
Package Quantity
1
Packaging
Bulk
PCB Mounting Orientation
Straight
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
Yes (With)
Series
SMP
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
