RF coaxial connector, straight orientation, male gender, designed for through-hole mounting with solder termination. Features a 50 Ohm impedance, operating frequency range of 0 to 6 GHz, and a maximum frequency of 6 GHz. Constructed with a brass body and copper contacts, both plated with gold, and a TFE dielectric. Offers a voltage rating of 335V, a maximum operating temperature of 165°C, and 500 mating cycles.
Frequency6GHz
Voltage Rating335V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1060995-1 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
6mm
Dielectric Material
TFE
ELV
Compliant
Gender
Male
Housing Color
Gold
Impedance
50R
Insertion Loss
0.1dB
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
6mm
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Ports
1
Operating Frequency
0 to 6 GHz
Orientation
Straight
Packaging
Carton
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Radiation Hardening
No
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1060995-1 Datasheet
Download the complete datasheet for TE Connectivity 1060995-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

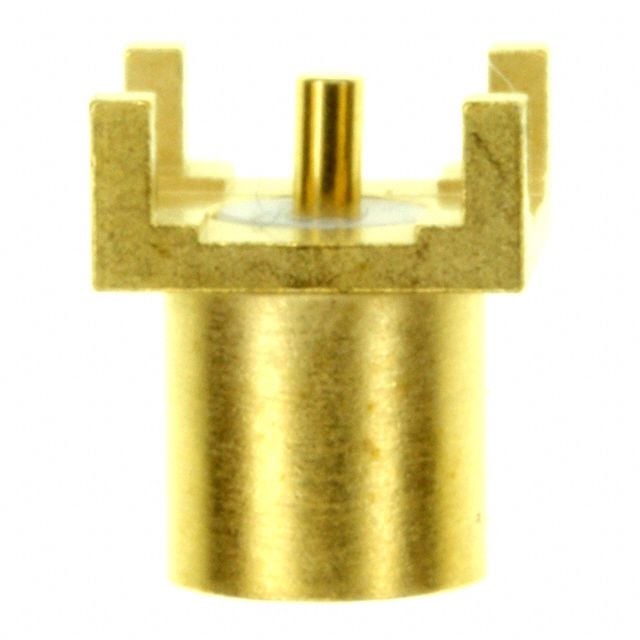

Product Images
