125-position, 2mm pitch backplane connector with straight, vertical PCB mounting orientation. Features bronze contacts with gold plating, a 1.5A current rating, and a 500V voltage rating. This receptacle-style connector has a press-fit termination and a maximum operating temperature of 125°C. Housing is grey, with a UL94 V-0 flammability rating.
Voltage Rating500V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 106774-1 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 11.4mm |
| ELV | Non-Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Grey |
| Lead Free | Not Applicable |
| Length | 49.9mm |
| Mating Alignment | No (Without) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Columns | 25 |
| Number of Contacts | 125 |
| Number of Positions | 125 |
| Number of Rows | 5 |
| Orientation | Straight |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Vertical |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Row Spacing | 2mm |
| Series | Z-Pack |
| Shielding | Unshielded |
| Termination | Press-Fit |
| Voltage Rating | 500V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
TE Connectivity 106774-1 Datasheet
Download the complete datasheet for TE Connectivity 106774-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

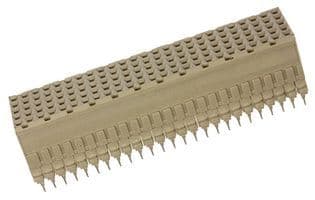

Product Images
