14-position, 2-row male pin header for ribbon cable termination. Features 1.27mm lead pitch and 2.54mm connector pitch, supporting 26-28AWG wire gauges. Rated for 1A current and 150 mating cycles, with gold-plated bronze contacts. Operates within a -65°C to 105°C temperature range. Black housing, free-hanging mount.
Current Rating1A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 111446-2 technical specifications.
General
Color
Black
Contact Current Rating
1A
Contact Material
Bronze
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
1A
ELV
Non-Compliant
Housing Color
Black
Lead Free
Contains Lead
Lead Pitch
1.27mm
Mating Cycles
150
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Number of Contacts
14
Number of Poles
14
Number of Positions
14
Number of Rows
2
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
No
Series
AMP-LATCH
Termination
IDT
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Gauge
26AWG
Wire/Cable Type
Ribbon
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 111446-2 Datasheet
Download the complete datasheet for TE Connectivity 111446-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

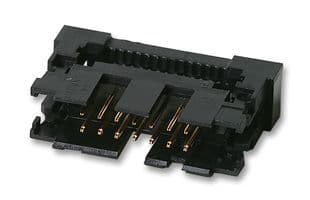

Product Images
