TE CONNECTIVITY

1241050-3

Datasheet

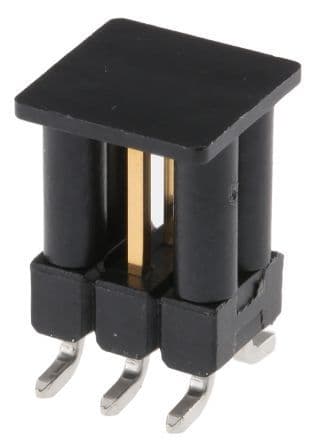

2x3P 6 Pos 2.54mm Pitch SMD Header, Gold Plated

TE Connectivity

1241050-3

Name: 1241050-3 TE Connectivity
Brand: TE Connectivity
SKU: 1241050-3

2x3P 6 Pos 2.54mm Pitch SMD Header, Gold Plated

Surface mount male header with 6 positions across 2 rows, featuring a 2.54mm pitch and 2.54mm row spacing. Contacts are CuZn with gold or gold-palladium mating finish and gold, tin plating, offering a 3A current rating and 250V voltage rating. The black, polycyclohexylenedimethylene housing is straight oriented and designed for vertical PCB mounting. Operating temperature range is -65°C to 105°C, with lead-free and RoHS compliance.

Voltage Rating250V

Current Rating3A

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 1241050-3 technical specifications.

General

Board Standoff	No (Without)
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	CuZn
Contact Mating Length	5.8mm
Contact Plating	Gold, Tin
Contact Protection	No (Without)
Contact Shape	Square
Contact Style	Pin
Contact Type	Male Pin
Current Rating	3A
ELV	Compliant
Gender	Male
Height	11.015mm
High Speed Serial Data Connector	No
High Temperature Housing	No
Housing Color	Black
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene
Keyed	No
Lead Free	Lead Free
Mating Alignment	No (Without)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Surface Mount
Number of Contacts	6
Number of Positions	6
Number of Rows	2
Orientation	Straight
Package Quantity	350
Packaging	Tape and Reel
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Plating Thickness	0.8um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU MOD II
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	SMD/SMT
Voltage Rating (AC)	250V
DC Rated Voltage	250V
Working Voltage	250V
