Technical Specifications

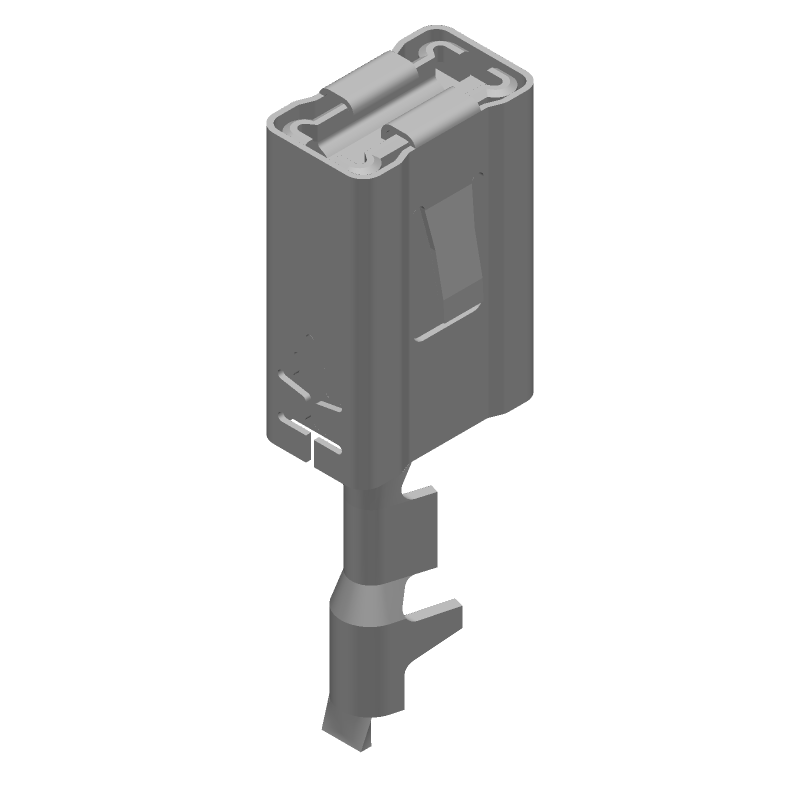

TE Connectivity 1241400-1 technical specifications.
General
| Approvals | IEC |
| Contact Material | Copper |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 40A |
| Gender | Female |
| Insulation Diameter | 1.6mm |
| Mating Tab Width | 0.189inch |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 1800 |
| Packaging | Box |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | MCP 6.3/4.8K |
| Termination | Crimp |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1241400-1 Datasheet
Download the complete datasheet for TE Connectivity 1241400-1 to view detailed technical specifications.
