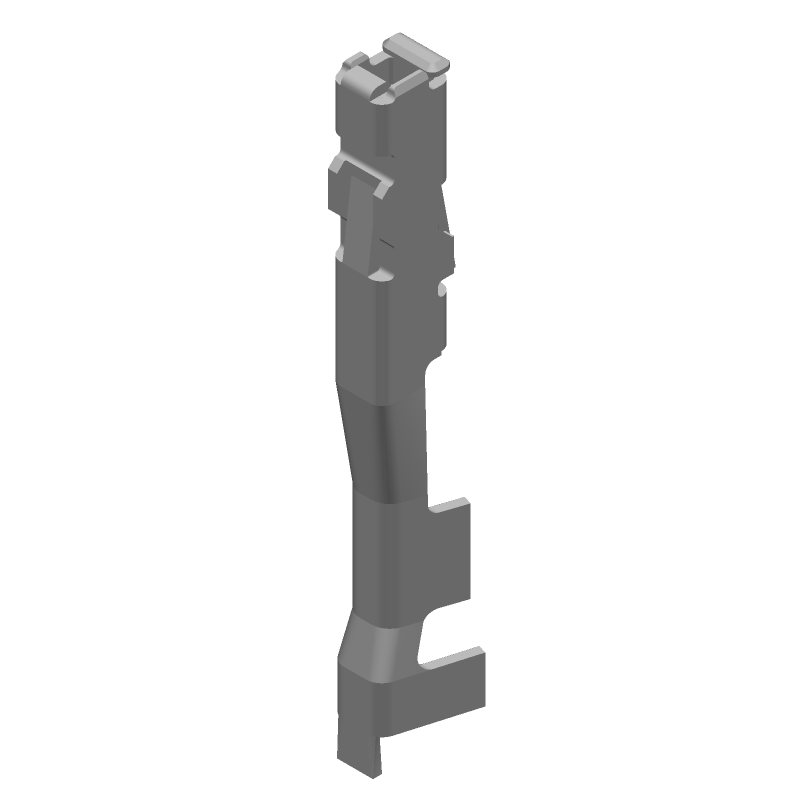

Female signal contact for cable mounting, featuring a straight orientation and crimp termination. Constructed from copper alloy with tin plating, this component supports wire gauges from 20 to 24 AWG for discrete wire types. Operating temperature range is -22°C to 221°C, with a mating tab width of 0.64mm and an insulation diameter of 0.067 inches. This RoHS and ELV compliant contact is supplied in a bag of 1000 units.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1318143-1 technical specifications.
General
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Type
Signal
Depth
2.5mm
ELV
Compliant
Gender
Female
Height
2.38mm
Insulation Diameter
0.067inch
Lead Free
Lead Free
Length
16mm
Mating Tab Width
0.64mm
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Multi-Lock
Shielding
Unshielded
Termination
Crimp
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
24AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
