Four-position, right-angle wire-to-board power header with a 6.35mm pitch. Features a 19A current rating, 600V voltage rating, and tin-plated bronze contacts. Designed for solder termination with through-hole mounting and includes mating alignment and retention. Operating temperature range is -40°C to 221°C, with UL94 V-0 flammability rating.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 13509440 technical specifications.
General
| Approvals | CSA |
| Circuit Application | Power |
| Color | Beige |
| Connector System | Wire-to-Board |
| Contact Current Rating | 12A |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Current Rating | 19A |
| Depth | 17.27mm |
| Flammability Rating | UL94 V-0 |
| Height | 9.14mm |
| Length | 26.67mm |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Power Positions | 4 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 140 |
| Packaging | Box |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 0.062mm |
| Pitch | 6.35mm |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Strain Relief | No (Without) |
| Termination | Solder |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 17.27mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 13509440 Datasheet
Download the complete datasheet for TE Connectivity 13509440 to view detailed technical specifications.
No datasheet is available for this part.

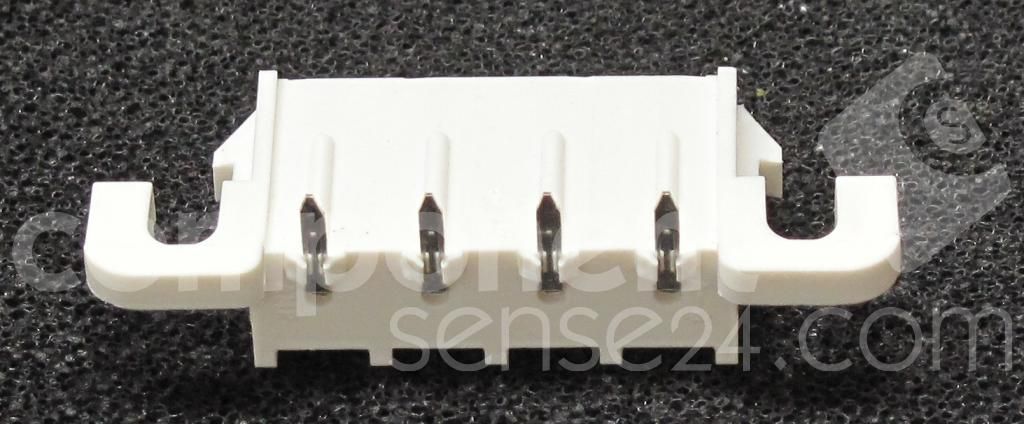

Product Images
