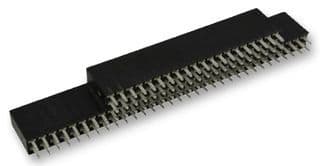

104-position, 4-row shrouded header with 2.54mm pitch, straight orientation, and solder termination. Features gold-plated bronze contacts, a 3A current rating, and a maximum operating temperature of 105°C. Housing is black, UL94 V-0 flammability rated, and the connector is RoHS compliant. Mounts via through-hole technology.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1375963-4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | cULus |
| Board Standoff | No (Without) |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Post Length | 0.119inch |
| Current Rating | 3A |
| Depth | 9.9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Keyed | No |
| Length | 81.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 104 |
| Number of Positions | 104 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 21 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | AMPMODU |
| Tail Length | 3.02mm |
| Termination | Solder |
| RoHS | Compliant |
