General purpose electromechanical relay featuring a 12V DC coil with 37.5mA coil current and 500mW coil power. Offers a 7A contact current rating with Silver contacts and a 250V AC contact voltage rating. Designed for PCB mounting with through-hole termination, this SPDT relay has a 5ms operate time and 3ms release time. Rated IP67, it operates within a -25°C to 70°C temperature range and is UL approved and RoHS compliant.
Current Rating7A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 1393203-8 technical specifications.
General
Application(s)
POWER
Approvals
UL
Coil Current
37.5mA
Coil Power
500mW
Coil Resistance
320R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
7A
Contact Material
Silver
Contact Voltage Rating (AC)
250V
Current Rating
7A
Depth
16.2mm
Dropout Voltage
1.2V
ELV
Compliant
Height
0.587inch
Lead Free
Lead Free
Length
0.834inch
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
400V
Mount
Through Hole, PCB
Operate Time
5ms
Package Quantity
400
Packaging
Tray
Ratings
IP67
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
3ms
RoHS Compliant
Yes
Series
V23148, SCHRACK
Termination
PCB
Throw Configuration
SPDT
Weight
9.5g
Width
16.21mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1393203-8 Datasheet
Download the complete datasheet for TE Connectivity 1393203-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

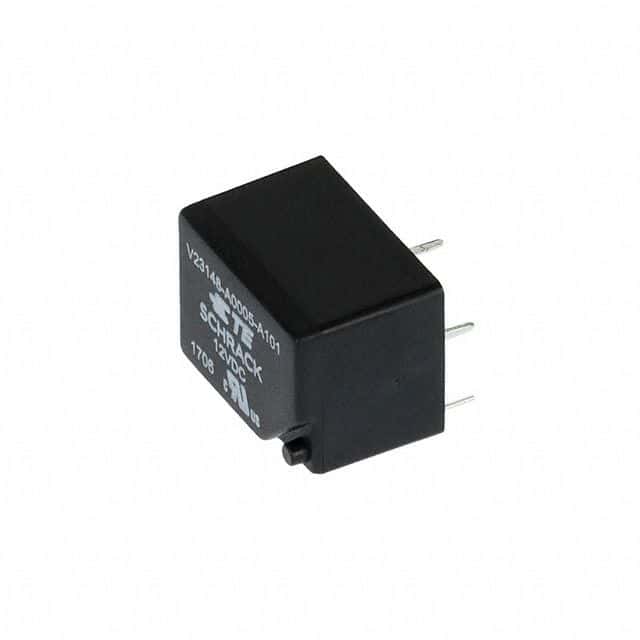

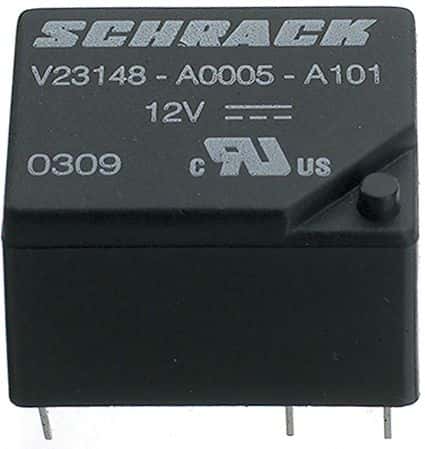

Product Images
