10-conductor, 28AWG ribbon cable with 1.27mm pitch, featuring copper conductors and PVC insulation. This unshielded cable offers a 2A current rating, 300V AC voltage rating, and operates between -20°C and 105°C. Characteristic impedance is 100 Ohms, with a propagation delay of 4.53ns. The 100-foot cable is RoHS compliant and UL approved.
Capacitance45.92pF
Voltage Rating300V
Current Rating2A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1437361-3 technical specifications.
General
Approvals
UL
Cable Pitch
1.27mm
Capacitance
45.92pF
Characteristic Impedance
100R
Color
Grey
Conductor Material
Copper
Current Rating
2A
Depth
12.7mm
ELV
Compliant
Height
0.89mm
Impedance
100R
Insulation Material
PVC
Lead Free
Not Applicable
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
300V
Mount
Cable
Number of Conductors
10
Number of Strands
19
Number of Ways
10
Packaging
Tape and Reel
Pitch
1.27mm
Propagation Delay
4.53ns
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Unshielded
Strand Size
40AWG
Stranding
19X40
Voltage Rating
300V
Voltage Rating (AC)
300V
Width
0.5inch
Wire/Cable Diameter
12.69mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1437361-3 Datasheet
Download the complete datasheet for TE Connectivity 1437361-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

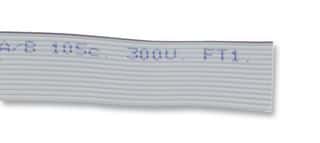

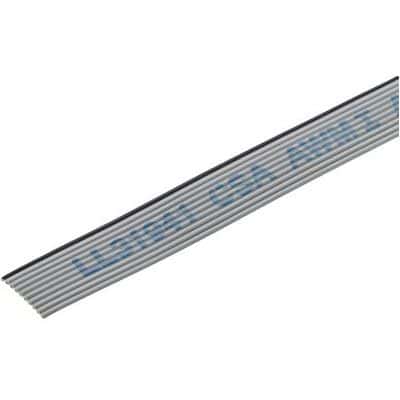

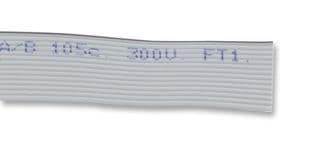

Product Images
