TE Connectivity
1462037-4
TE CONNECTIVITY / AXICOM IM01TS Signal Relay, IM Series, DPDT, 3 VDC, 2 A, Through Hole, Non Latching
PackageDIP
MountingThrough Hole
Power140mW
Quick Jump:
Technical Specifications
TE Connectivity 1462037-4 technical specifications.
General
Actuating System
DC
Package/Case
DIP
Coil Current
46.88mA
Coil Power
140mW
Coil Resistance
64R
Coil Type
Non-Latching
Coil Voltage (DC)
3V
Contact Current Rating
2A
Contact Material
Gold, Ruthenium
Contact Plating
Gold
Contact Voltage Rating (DC)
220V
Depth
6mm
Height
5.8mm
Insertion Loss
-0.03dB
Length
10inch
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Through Hole
Operate Time
1ms
Package Quantity
1000
Packaging
Rail/Tube
Power Consumption
140mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
Relay
Release Time
3ms
RoHS Compliant
Yes
Series
IM, AXICOM
Termination
PCB
Throw Configuration
DPDT
VSWR
1.06
Weight
0.75oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1462037-4 Datasheet
Download the complete datasheet for TE Connectivity 1462037-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

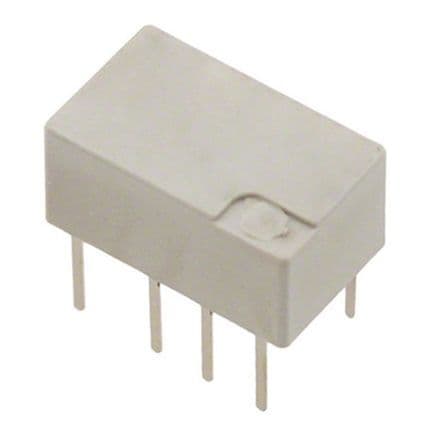

Product Images
