12-position, 2-row shrouded header receptacle with 2.54mm pitch, straight orientation, and surface mount termination. Features gold-plated bronze female socket contacts with a square shape, rated for 3A current and 250V AC. Constructed with a black glass-filled nylon housing, this component offers a temperature range of -65°C to 125°C and meets UL94 V-0 flammability rating. Includes board standoff and is supplied in a tube package.
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 147102-6 technical specifications.
General
Approvals
UL, CSA
Board Standoff
Yes (With)
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Current Rating
3A
Depth
5.03mm
ELV
Compliant
Flammability Rating
UL94 V-0
High Temperature Compatible
Yes
Housing Color
Black
Insulation Color
Black
Insulation Material
Glass
Lead Free
Contains Lead
Length
20.32mm
Max Operating Temperature
-125°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Surface Mount
Number of Contacts
12
Number of Positions
12
Number of Rows
2
Orientation
Straight
Package Quantity
1400
Packaging
Rail/Tube
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
No
Row Spacing
0.1inch
Sealable
No (Without)
Series
AMPMODU MOD IV
Stackable
No
Termination
SMD/SMT
Voltage Rating (AC)
250V
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 147102-6 Datasheet
Download the complete datasheet for TE Connectivity 147102-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

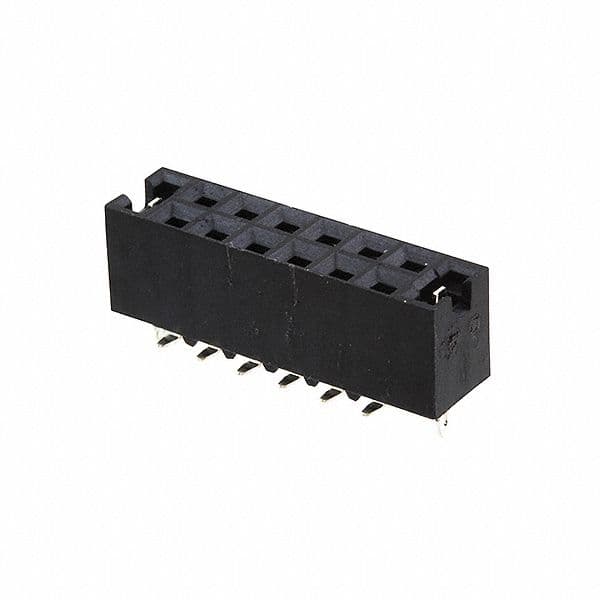

Product Images
