147721-3

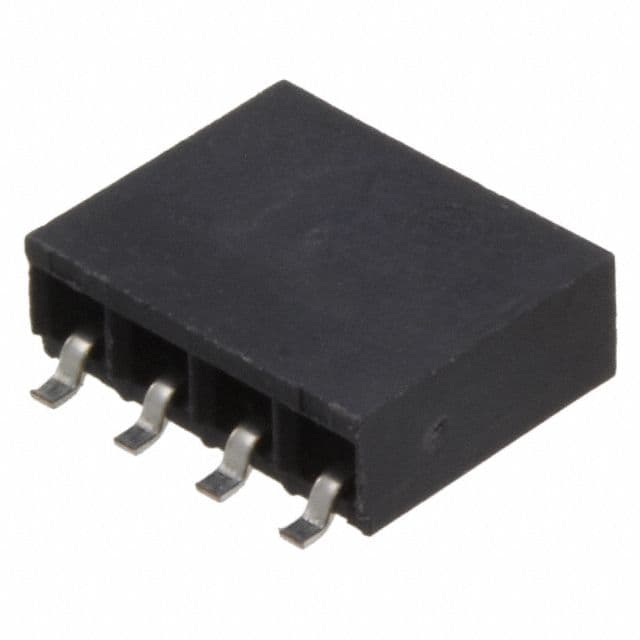

4-position, 2.54mm pitch shrouded header for board-to-board applications. Features right-angle surface mount termination with a 3.48mm height and 0.86mm contact post length. Constructed with bronze contacts plated in gold, tin, and lead, offering a 2A current rating. Insulation material is glass with a black housing and insulation color. Operating temperature range is -65°C to 105°C, with UL94 V-0 flammability rating. Packaged in tape and reel for automated assembly.
