8-position, 5.08mm pitch wire-to-board terminal block with a straight orientation. Features brass contacts with tin plating, rated for 17.5A and 300V AC. This black, through-hole mount terminal block supports wire gauges from 12AWG to 30AWG and operates within a temperature range of -40°C to 105°C. Includes an interlock feature and is RoHS compliant.
Voltage300V
Current17.5A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Technical Specifications
TE Connectivity 1546074-8 technical specifications.
General
Closed End
No (Without)
Color
Black
Connector System
Wire-to-Board
Contact Material
Brass
Contact Plating
Tin
Current
17.5A
Current Rating
17.5A
Depth
12.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Interlock
Yes (With)
Lead Free
Lead Free
Lead Length
3.8mm
Length
40.64mm
Max Current Rating
17.5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Poles
8
Number of Positions
8
Number of Positions Per Level
8
Number of Rows
1
Operating Supply Voltage
300V
Orientation
Straight
Package Quantity
100
Packaging
Box
Pin Length
3.8mm
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
No (Without)
Tail Length
0.15inch
Termination
Solder
Voltage
300V
Voltage Rating
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1546074-8 Datasheet
Download the complete datasheet for TE Connectivity 1546074-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

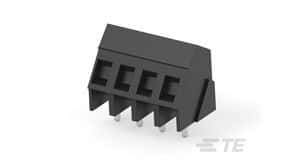

Product Images
