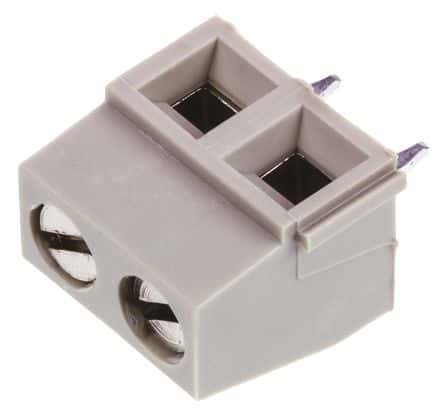

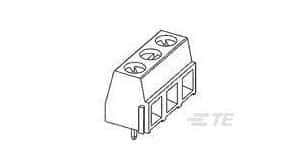

2 Pos 5mm Terminal Block, 13.5A, 300V, Straight, Thru-Hole

TE Connectivity

1546216-2

Name: 1546216-2 TE Connectivity
Brand: TE Connectivity
SKU: 1546216-2

2 Pos 5mm Terminal Block, 13.5A, 300V, Straight, Thru-Hole

2-position, straight, male header terminal block with 5mm pitch. Features brass contacts with tin plating, rated for 13.5A and 300V AC. Constructed from grey nylon housing, this through-hole mount component offers a maximum operating temperature of 105°C and a flammability rating of UL94 V-0. Designed for 15-17 AWG wire, it includes an interlock feature and is RoHS compliant.

Voltage300V

Current13.5A

Voltage Rating300V

Current Rating13.5A

Quick Jump:

Technical Specifications

TE Connectivity 1546216-2 technical specifications.

General

Closed End	No (Without)
Color	Grey
Contact Material	Brass
Contact Plating	Tin
Current	13.5A
Current Rating	13.5A
Depth	10mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Grey
Interlock	Yes (With)
Length	10mm
Material	Nylon
Max Current Rating	13.5A
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	300V
Mount	Through Hole
Number of Circuits	2
Number of Contacts	2
Number of Levels	1
Number of Poles	2
Number of Positions	2
Number of Positions Per Level	2
Number of Rows	1
Orientation	Straight
Package Quantity	300
Packaging	Bulk
Pitch	5mm
Plating	Brass
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Screw Flange	No (Without)
Screwless Terminal Block	No (Without)
Series	Buchanan
Side Stackable	No (Without)
Tail Length	3.5mm
Termination	Screw
Voltage	300V
Voltage Rating	300V
Voltage Rating (AC)	300V
Width	8.2mm
Wire Gauge (Max)	17AWG
Wire Gauge (Min)	15AWG
Wire/Cable Gauge	30AWG
