3-position, 1-row, wire-to-board PCB mount terminal block with straight orientation. Features brass contacts with tin plating, a 5mm pitch, and a 300V AC voltage rating. Rated for 13.5A current and accommodates 15-17 AWG wire. Constructed from UL94 V-0 rated grey nylon housing, it includes an interlock feature and operates within a -40°C to 105°C temperature range.
Voltage300V
Current13.5A
Voltage Rating300V
Current Rating13.5A
Quick Jump:
Technical Specifications
TE Connectivity 1546216-3 technical specifications.
General
Closed End
No (Without)
Color
Grey
Connector System
Wire-to-Board
Contact Material
Brass
Contact Plating
Tin
Current
13.5A
Current Rating
13.5A
Depth
10mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Grey
Interlock
Yes (With)
Length
15mm
Material
Nylon
Max Current Rating
13.5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Operating Supply Voltage
300V
Orientation
Straight
Package Quantity
200
Packaging
Bulk
Pitch
5mm
Plating
Brass
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
No (Without)
Tail Length
3.5mm
Termination
Screw
Voltage
300V
Voltage Rating
300V
Width
8.2mm
Wire Gauge (Max)
17AWG
Wire Gauge (Min)
15AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1546216-3 Datasheet
Download the complete datasheet for TE Connectivity 1546216-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

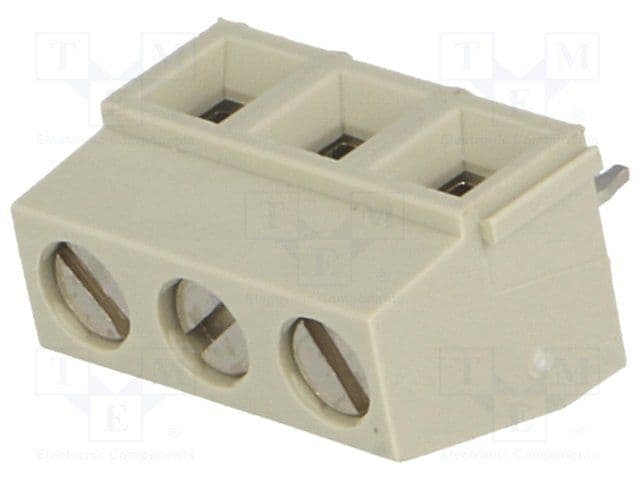

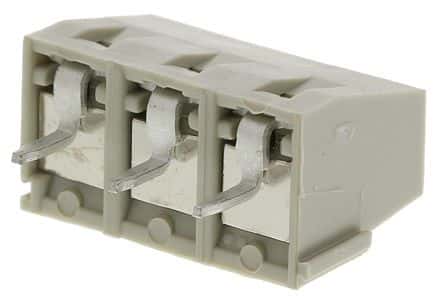

Product Images
