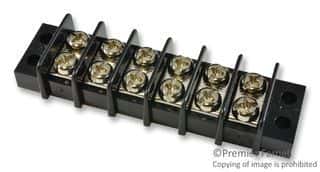

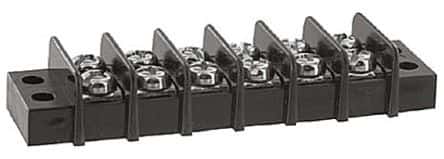

Barrier strip terminal block featuring a 20A current rating and 300V voltage rating. This 6-position, 2-row, 1-deck component offers straight orientation with screw termination and brass contacts plated in tin. Constructed from black thermoplastic insulation, it operates between -40°C and 248°C and boasts UL and UL94 V-0 flammability ratings. Designed for panel or chassis mounting with mounting ears, it supports 22AWG wire gauge and includes 6 circuits.
Voltage300V
Voltage Rating300V
Current Rating20A
MountingPanel, Chassis, Through Hole
Quick Jump:
Technical Specifications
TE Connectivity 1546306-6 technical specifications.
General
Approvals
UL
Color
Black
Contact Material
Brass
Contact Plating
Tin
Current Rating
20A
Depth
21.8mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
2.92inch
Material
Thermoplastic
Max Current Rating
20A
Max Operating Temperature
248°C
Min Operating Temperature
-40°C
Max Supply Voltage
300V
Mount
Panel, Chassis, Through Hole
Mounting Ears
Yes (With)
Mounting Insert
No (Without)
Number of Circuits
3
Number of Contacts
6
Number of Levels
1
Number of Poles
6
Number of Positions
6
Number of Rows
2
Number of Wire Entries
12
Orientation
Straight
Package Quantity
100
Packaging
Carton
Pitch
9.53mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Buchanan
Terminal Material
Brass
Termination
Screw
Voltage
300V
Voltage Rating
300V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1546306-6 Datasheet
Download the complete datasheet for TE Connectivity 1546306-6 to view detailed technical specifications.
