Right-angle, surface-mount wire-to-board connector featuring a 3-position, 1-row configuration with a 0.079-inch pitch. This male connector offers 3A contact current rating with gold-plated copper alloy female socket contacts, providing 3um plating thickness. It operates within a -22°C to 167°C temperature range and is constructed with UL94 V-0 rated thermoplastic housing.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1565994-3 technical specifications.
General
Connector System
Wire-to-Board
Contact Current Rating
3A
Contact Finish - Mating
GOLD
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Female Socket
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Halogen Free
Halogen Free
Height
7.7mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
0.543inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
167°C
Min Operating Temperature
-22°C
Mount
Surface Mount
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Right Angle
Package Quantity
250
Packaging
Tape and Reel
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Pitch
0.079inch
Plating Thickness
3um
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
RITS
Shielding
Unshielded
Shrouded
Yes (With)
Termination
SMD/SMT
DC Rated Voltage
32V
Width
12.6mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1565994-3 Datasheet
Download the complete datasheet for TE Connectivity 1565994-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

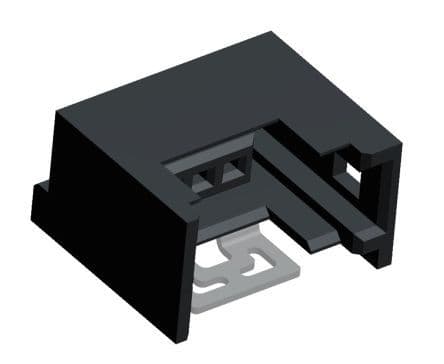

Product Images
