6-position, 2-row right-angle power connector for wire-to-board applications. Features 9A contact current rating, tin-plated brass male pin contacts with a square shape, and a 4.2mm pitch. Nylon insulation in natural color, with a 600V AC voltage rating and UL94 V-0 flammability. Through-hole mounting with PCB mount retention, suitable for 16AWG to 26AWG wire.
Voltage Rating600V
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1586044-6 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
9A
Contact Finish - Mating
TIN
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
9A
Depth
19.4mm
Flammability Rating
UL94 V-0
Height
0.386inch
Insulation Color
Natural
Insulation Diameter
0.122inch
Insulation Material
Nylon
Length
0.543inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Contacts
6
Number of Ports
1
Number of Positions
6
Number of Power Positions
6
Number of Rows
2
Orientation
Right Angle
Package Quantity
1600
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.063mm
Pitch
4.2mm
Plating Thickness
80um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Solder
Voltage Rating
600V
Voltage Rating (AC)
600V
Width
0.5118inch
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1586044-6 Datasheet
Download the complete datasheet for TE Connectivity 1586044-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

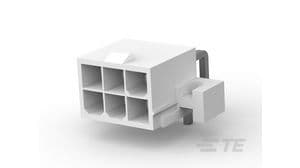

Product Images
