TE Connectivity
1586899-1
5 Pos Power Connector, 12A, 600V, 6.35mm, Solder RA, Thru-Hole, Female Socket
Power connector, wire-to-board system, featuring a right-angle, through-hole mounting orientation with a 6.35mm pitch. This 5-position connector offers a 12A contact current rating and a 600V AC voltage rating. Constructed with bronze contacts plated in tin, it utilizes a nylon housing and insulation. Operating within a temperature range of -40°C to 221°C, it is UL and VDE tested, with UL94 V-2 flammability rating and RoHS compliance.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1586899-1 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Current Rating | 12A |
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 5 |
| Number of Power Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 140 |
| Packaging | Box |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 0.062mm |
| Pitch | 6.35mm |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Termination | Solder |
| VDE Tested | Yes |
| Voltage Rating (AC) | 600V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1586899-1 Datasheet
Download the complete datasheet for TE Connectivity 1586899-1 to view detailed technical specifications.
No datasheet is available for this part.

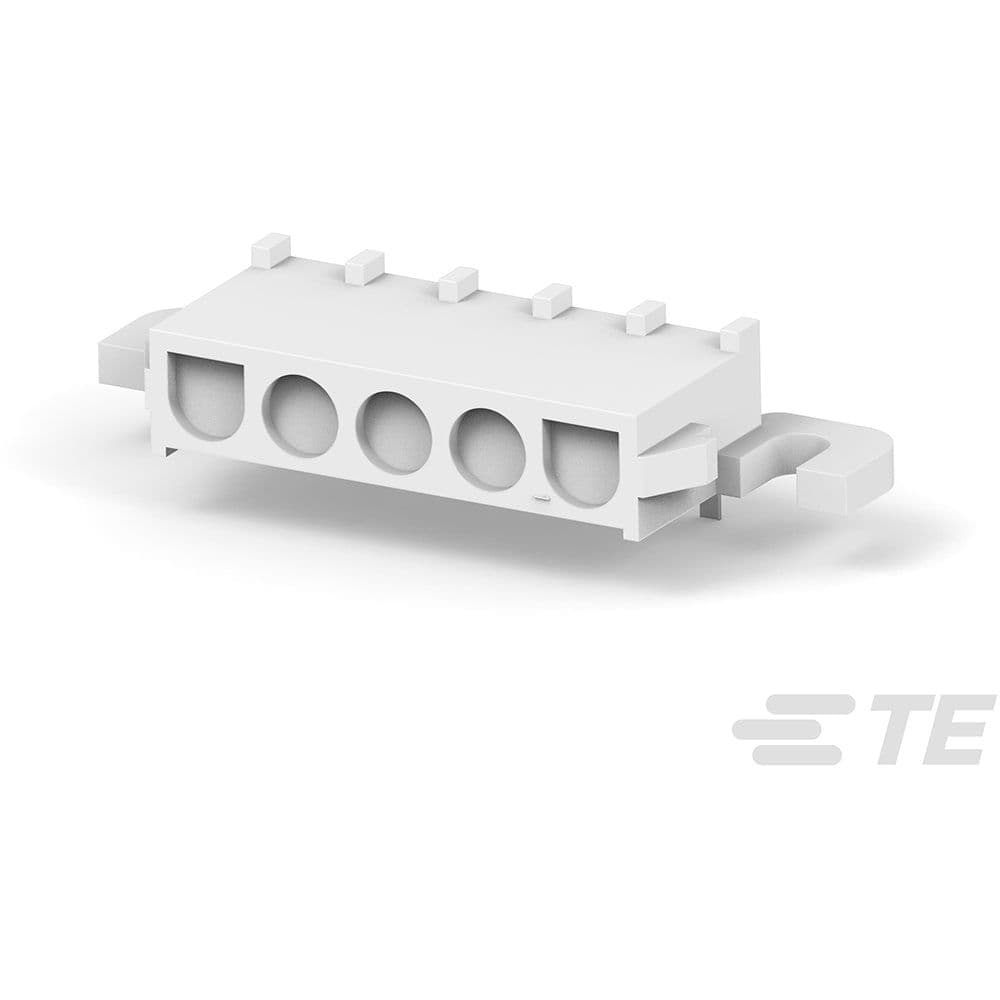

Product Images
