General purpose ring tongue terminal for 15-20AWG wire. Features brass contact material with tin plating for reliable conductivity. This non-insulated terminal offers a 5.3mm stud diameter and a 19.9mm length, with a 3.048mm insulation diameter. Designed for free-hanging mounting and tape and reel packaging for efficient assembly. RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 160102-2 technical specifications.
General
Contact Material
Brass
Contact Plating
Tin
ELV
Compliant
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Non-Insulated
Insulation Diameter
3.048mm
Lead Free
Not Applicable
Length
19.9mm
Material
Brass
Mount
Free Hanging
Package Quantity
6000
Packaging
Tape and Reel
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Shrouded
No (Without)
Stud Diameter
5.3mm
Termination
Circular
Thickness
0.025inch
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
0.12inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 160102-2 Datasheet
Download the complete datasheet for TE Connectivity 160102-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

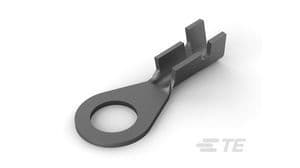

Product Images
