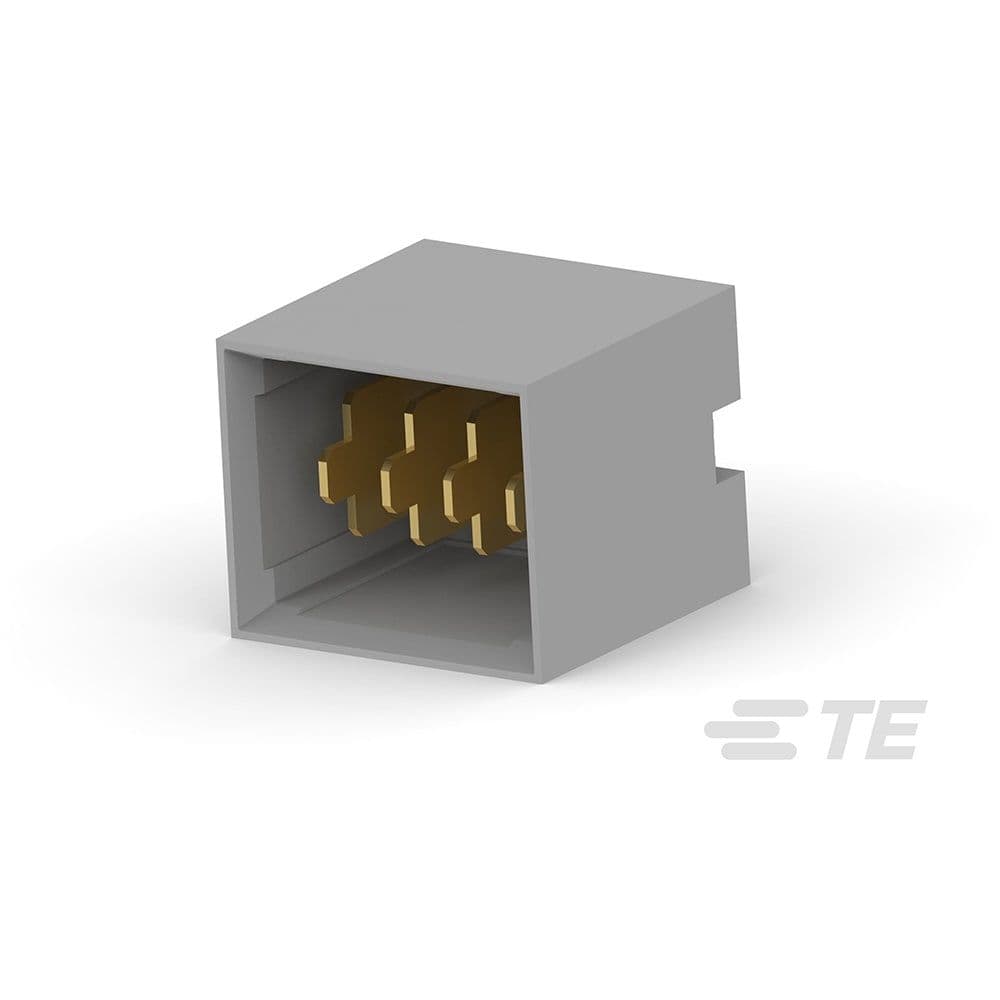

4-position, 1-row vertical header for board-to-board applications. Features a 0.118-inch pitch and 15mm stacking height, designed for power circuit applications with a 10A current rating and 250V voltage rating. Utilizes bronze contacts with tin plating and press-fit termination. Operating temperature range from -55°C to 125°C, with a UL94 V-0 flammability rating. RoHS and ELV compliant.
Voltage Rating250V
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1645498-2 technical specifications.
General
| Circuit Application | Power |
| Color | Natural |
| Connector System | Board-to-Board |
| Contact Current Rating | 16A |
| Contact Material | Bronze |
| Contact Plating | Metal, Tin |
| Contact Retention | Yes (With) |
| Current Rating | 10A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Power Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 135 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Vertical |
| Pitch | 0.118inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0inch |
| Sealable | No (Without) |
| Series | UPM (Universal Power Modules) |
| Termination | Press-Fit |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1645498-2 Datasheet
Download the complete datasheet for TE Connectivity 1645498-2 to view detailed technical specifications.
No datasheet is available for this part.
