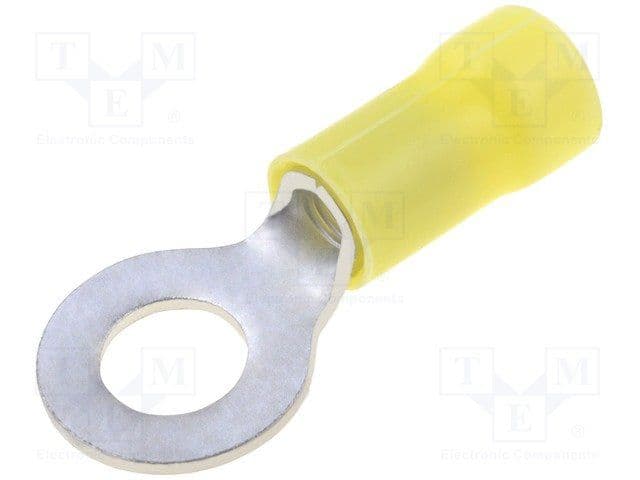

Insulated ring terminal for 10-12 AWG wire, featuring a copper contact with tin plating. This yellow, PVC-insulated component offers a 600V AC voltage rating and a 0.265-inch stud diameter (M6). Designed for free-hanging mounting and crimp termination, it has a 30.074mm length and 6.78mm insulation diameter. RoHS compliant and supplied in loose piece packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 165035 technical specifications.
General
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
ELV
Compliant
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
No
Insulation
Insulated
Insulation Diameter
6.78mm
Insulation Material
PVC
Lead Free
Not Applicable
Length
30.074mm
Material
Copper, Tin, PVC
Mount
Free Hanging
Number of Holes
1
Package Quantity
500
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Plasti-Grip
Stud Diameter
0.265inch
Stud Size
M6
Termination
Crimp
Tongue Thickness
0.039inch
Voltage Rating (AC)
600V
Wire Gauge (Max)
12AWG
Wire Gauge (Min)
10AWG
Wire/Cable Diameter
6.78mm
Wire/Cable Gauge
10AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 165035 Datasheet
Download the complete datasheet for TE Connectivity 165035 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
