TE CONNECTIVITY

1651826-1

30 Pos Female Header, 2 Row, 2.5mm Pitch, 25A, Solder, Straight

TE Connectivity

1651826-1

Name: 1651826-1 TE Connectivity
Brand: TE Connectivity
SKU: 1651826-1

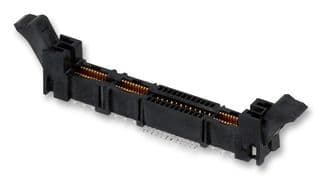

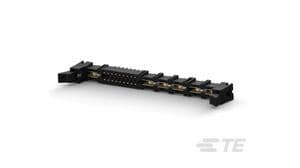

30 Pos Female Header, 2 Row, 2.5mm Pitch, 25A, Solder, Straight

Female header, 30 positions, 2 rows, 2.5mm pitch, board-to-board connector with straight orientation and solder termination. Features 12 power contacts and 18 signal contacts, rated for 250V and 25A. Constructed with copper alloy contacts plated in gold and tin, and a black glass-filled housing. Through-hole PCB mount design with mating alignment and retention. Operating temperature range from -67°C to 221°C.

Voltage Rating250V

Current Rating25A

MountingThrough Hole, PCB

Quick Jump:

Technical Specifications

TE Connectivity 1651826-1 technical specifications.

General

Approvals	CSA
Circuit Application	Power
Color	Black
Connector System	Board-to-Board
Contact Current Rating	25A
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Current Rating	25A
Depth	9.03mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	20mm
Housing Color	Black
Insulation Material	Glass
Lead Free	Lead Free
Length	114.96mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Mount	Through Hole, PCB
Number of Contacts	30
Number of Ports	1
Number of Positions	30
Number of Power Positions	12
Number of Rows	2
Number of Signal Positions	18
Orientation	Straight
Package Quantity	32
Packaging	Tray
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	3.175mm
Pitch	2.5mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	3.33mm
Series	Mini Crown Edge, Elcon
Termination	Solder
Voltage Rating	250V
Width	0.3555inch
