Female signal and power contact, cable mount, straight orientation, with a crimp termination style. Features stamped and formed bronze contact material with gold and tin plating, suitable for wire gauges 22-26AWG. Operating temperature range from -55°C to 125°C, with a 1.27mm insulation diameter and 2.67mm depth. Packaged loose piece, 1000 per package, and RoHS compliant.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1658543-1 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Style
Crimp
Contact Type
Stamped & Formed
Depth
2.67mm
ELV
Compliant
Gender
Female
Insulation Diameter
1.27mm
Lead Free
Lead Free
Length
14.35mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating Thickness
0.76um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE HDP-20
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
26AWG
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1658543-1 Datasheet
Download the complete datasheet for TE Connectivity 1658543-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

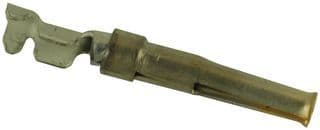

Product Images
