TE CONNECTIVITY

1658608-1

Datasheet

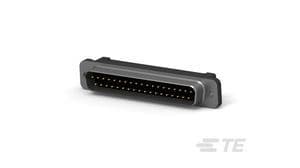

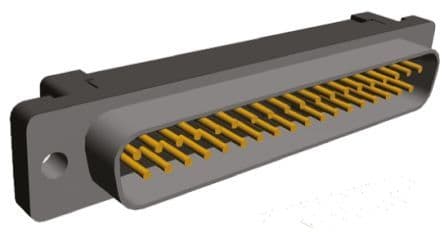

37 Pos D-Sub Connector, Right Angle, Shielded, Male, 1.25A, 250V

TE Connectivity

1658608-1

Name: 1658608-1 TE Connectivity
Brand: TE Connectivity
SKU: 1658608-1

37 Pos D-Sub Connector, Right Angle, Shielded, Male, 1.25A, 250V

37-position, male D-Subminiature connector for signal applications. Features a right-angle, free-hanging, cable mount orientation with IDC termination. Constructed with a shielded steel shell and metal body plated in tin, offering a current rating of 1.25A and a voltage rating of 250V. Includes bronze signal contacts with gold and tin plating, a thermoplastic dielectric, and a UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C.

PackageMetal

Voltage Rating250V

Current Rating1.25A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1658608-1 technical specifications.

General

Approvals	UL, CSA
Body Material	Metal
Body Plating	Tin
Package/Case	Metal
Circuit Application	Signal
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Type	Signal
Current Rating	1.25A
Depth	12.59mm
Dielectric Material	Thermoplastic
Flammability Rating	UL94 V-0
Gender	Male
Height	18.56mm
Housing Color	Black
Lead Free	Lead Free
Length	69.39mm
Material	Metal
Mating Connector Lock	Yes (With)
Max Current Rating	1.25A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	30V
Max Voltage Rating (AC)	30V
Mount	Free Hanging, Cable
Number of Contacts	37
Number of Ports	1
Number of Positions	37
Number of Rows	2
Orientation	Right Angle
Package Quantity	40
Packaging	Rail/Tube
Pitch	2.77mm
Plating	Bright, Tin
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HDF-20
Shell Material	Steel
Shell Size	4
Shielding	Shielded
Termination	IDC
Voltage Rating	250V
Width	12.6mm
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Diameter	0.97mm
Wire/Cable Type	Ribbon
