25-position, male D-Subminiature connector for signal applications. Features a metal shell with tin plating, right-angle orientation, and IDC termination for 26-28 AWG ribbon wire. Offers a 1.25A current rating and 30V voltage rating, with a -55°C to 105°C operating temperature range. Includes UL and CSA approvals, UL94 V-0 flammability rating, and is RoHS compliant.
PackageMetal
Voltage Rating30V
Current Rating1.25A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1658608-2 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal
Body Plating
Tin
Package/Case
Metal
Circuit Application
Signal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Type
Signal
Current Rating
1.25A
Depth
12.59mm
Dielectric Material
Thermoplastic
Flammability Rating
UL94 V-0
Gender
Male
Height
18.56mm
Housing Color
Black
Lead Free
Lead Free
Length
53.08mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Current Rating
1.25A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
30V
Max Voltage Rating (AC)
30V
Mount
Free Hanging, Cable
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Right Angle
Package Quantity
40
Packaging
Rail/Tube
Pitch
2.77mm
Plating
Bright, Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HDF-20
Shell Material
Steel
Shell Size
3
Shielding
Shielded
Termination
IDC
Voltage Rating
30V
Width
18.56mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Diameter
0.97mm
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1658608-2 Datasheet
Download the complete datasheet for TE Connectivity 1658608-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

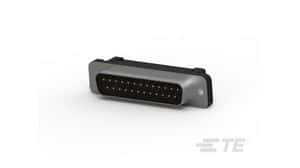

Product Images
