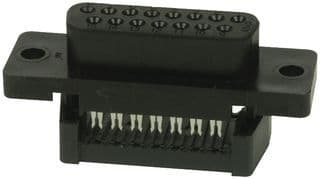

15 Pos D-Sub Connector, Female, Right Angle, Shielded, IDC

TE Connectivity

1658614-3

Name: 1658614-3 TE Connectivity
Brand: TE Connectivity
SKU: 1658614-3

15 Pos D-Sub Connector, Female, Right Angle, Shielded, IDC

15-position, right-angle D-Subminiature receptacle with female signal contacts made of gold and tin plated bronze. Features a black plastic body with a thermoplastic shell, offering shielded connectivity for ribbon wire up to 28AWG. Rated for 250V AC, 1.25A, and operating temperatures from -55°C to 105°C, with UL and CSA approvals. Includes mating connector lock and IDC termination for free-hanging or cable mounting.

Voltage Rating250V

Current Rating1.25A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1658614-3 technical specifications.

General

Approvals	UL, CSA
Body Material	Plastic
Color	Black
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Type	Signal
Current Rating	1.25A
Depth	18.61mm
Dielectric Material	Thermoplastic
Flammability Rating	UL94 V-0
Gender	Female
Length	39.14mm
Material	Plastic
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	15
Number of Ports	1
Number of Positions	15
Number of Rows	2
Orientation	Right Angle
Package Quantity	40
Packaging	Rail/Tube
Pitch	2.77mm
Plating	Thermoplastic
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	AMPLIMITE HDF-20
Shell Material	Thermoplastic
Shell Size	2
Shielding	Shielded
Termination	IDC
Voltage Rating	250V
Width	12.59mm
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Diameter	0.97mm
Wire/Cable Type	Ribbon
