1658622-8

Datasheet

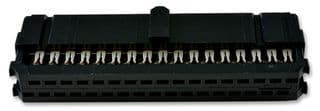

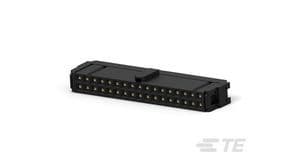

34 Pos 2 Row Female Receptacle, 2.54mm Pitch, 1A, 250V, Right Angle

TE Connectivity

1658622-8

Name: 1658622-8 TE Connectivity
Brand: TE Connectivity
SKU: 1658622-8

Active

34 Pos 2 Row Female Receptacle, 2.54mm Pitch, 1A, 250V, Right Angle

34-position, 2-row right-angle receptacle with a 2.54mm pitch. Features a 1A contact current rating, gold/tin plated bronze fork contacts, and a black housing. Designed for wire-to-board applications with a 250V voltage rating and a maximum operating temperature of 105°C. Lead-free and RoHS compliant, this component is suitable for ribbon wire types and terminates via solder.

Voltage Rating250V

Current Rating1A

MountingFree Hanging, Cable

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Approvals	UL
Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Type	Forked
Current Rating	1A
Depth	7.49mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	15.16mm
Housing Color	Black
Insulation Diameter	0.037inch
Lead Free	Lead Free
Length	1.8799inch
Mating Alignment	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	34
Number of Positions	34
Number of Rows	2
Orientation	Right Angle
Package Quantity	50
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Plating Thickness	0.76um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH NOVO
Shrouded	No (Without)
Termination	Solder
Voltage Rating	250V
Width	0.2949inch
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Type	Ribbon
