1658685-1

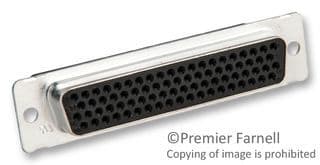

78 Pos High Density D-Sub Female Connector, Straight, Shielded, Gold Contact

High-density D-Subminiature connector, female, 78 positions, 4 rows, straight orientation, cable mount. Features shielded metal shell (steel) and body, with gold-plated bronze signal contacts. Rated for 250V AC, operating temperature range of -55°C to 105°C. UL94 V-0 flammability rating, RoHS compliant.

PackageMetal

Voltage Rating250V

MountingFree Hanging

Quick Jump:

Technical Specifications

TE Connectivity 1658685-1 technical specifications.

General

Approvals	UL, CSA
Body Material	Metal
Package/Case	Metal
Color	Black
Contact Material	Bronze
Contact Plating	Gold
Contact Type	Signal
Depth	17.9mm
Dielectric Material	Nylon
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	15.36mm
Housing Color	Black
Lead Free	Lead Free
Length	66.92mm
Material	Metal
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging
Number of Contacts	78
Number of Positions	78
Number of Rows	4
Orientation	Straight
Package Quantity	225
Packaging	Bulk
Plating	Tin
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	AMPLIMITE HDP-22
Shell Material	Steel
Shell Size	5
Shielding	Shielded
Termination	Through Hole
Voltage Rating	250V
Voltage Rating (AC)	250V
Width	6.17mm
