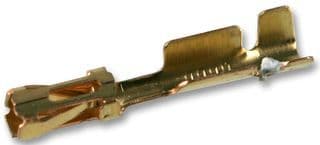

Female signal contact for discrete wire, featuring a straight orientation and crimp termination. Designed for cable mounting, this component supports a wire gauge range of 20-26AWG with a maximum insulation diameter of 1.4mm. It offers a contact current rating of 3A and a voltage rating of 250V AC, with a maximum operating temperature of 105°C. The contact material is bronze with tin plating, and it is RoHS compliant.
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 166310-3 technical specifications.
General
| Approvals | CSA |
| Contact Current Rating | 3A |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 3A |
| ELV | Compliant |
| Gender | Female |
| Insulation Diameter | 1.4mm |
| Lead Free | Not Applicable |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Loose Piece |
| Plating Thickness | 2um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPMODU Mod V |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Diameter | 1.4mm |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 166310-3 Datasheet
