TE CONNECTIVITY

171826-2

Datasheet

TE Connectivity

171826-2

Name: 171826-2 TE Connectivity
Brand: TE Connectivity
SKU: 171826-2

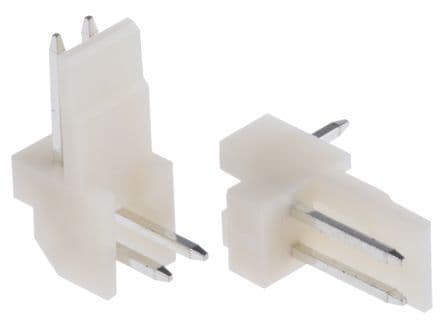

2 Pos Male Header, Right Angle, 2.5mm Pitch, 3.5A, Through Hole

2-position, single-row male pin header for wire-to-board applications. Features brass contacts with copper and tin plating, a 3.5A current rating, and 250V operating voltage. This right-angle, through-hole mount component has a 2.5mm pitch and a 7.5mm contact mating length. Constructed with a natural colored housing and UL94 V-0 flammability rating, it operates between -20°C and 95°C.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 171826-2 technical specifications.

General

Approvals	UL
Backwall/Post Interruptions	No (Without)
Color	Natural
Connector System	Wire-to-Board
Contact Current Rating	3.5A
Contact Gender	Male
Contact Material	Brass
Contact Mating Length	7.5mm
Contact Plating	Copper, Tin
Contact Retention	No (Without)
Contact Shape	Square
Contact Style	Pin
Contact Type	Male Pin
Depth	13.5mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	0.264inch
Housing Color	Natural
Lead Free	Lead Free
Length	5mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	95°C
Min Operating Temperature	-20°C
Mount	Through Hole
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Operating Supply Voltage	250V
Orientation	Right Angle
Package Quantity	1000
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Horizontal
PCB Thickness	0.063inch
Pitch	2.5mm
Plating	Nickel
Plating Thickness	0.8um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	EI
Strain Relief	No (Without)
Tail Length	0.142inch
Termination	Solder
