6-position, 2-row wire-to-wire connector housing with a 4.2mm pitch. Features a straight, receptacle gender and accepts male or female pin contacts with tin plating. Rated for 9.5A current and 600V AC/300V DC operating voltage, with a maximum operating temperature of 105°C. Constructed from natural colored nylon, this UL94 V-2 flammability rated component is CSA and VDE tested, and RoHS compliant.
Voltage Rating600V
Current Rating9.5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 172331-1 technical specifications.
General
| Approvals | CSA |
| Body Material | Nylon |
| Color | Natural, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Style | Pin |
| Contact Type | Male or Female |
| Current Rating | 9.5A |
| Depth | 23.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Height | 11.8mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 22mm |
| Material | Nylon |
| Max Current Rating | 9.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Panel |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Panel Thickness | 2inch |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 4.2inch |
| Sealable | No (Without) |
| Series | Mini-Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| DC Rated Voltage | 300V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 172331-1 Datasheet
Download the complete datasheet for TE Connectivity 172331-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

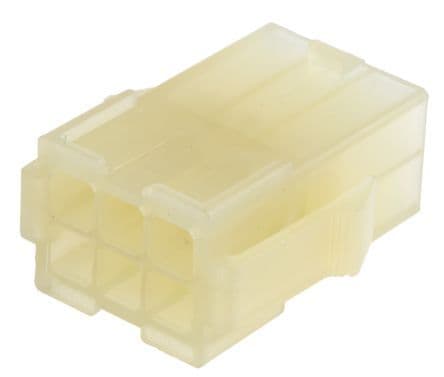

Product Images
