40-position, 4-row board-to-board connector with a 0.05-inch pitch and 2.54mm contact post length. Features gold, tin, and matte contact plating over bronze, with a 1A contact current rating and 250V AC voltage rating. This straight, through-hole mounted male connector has a black housing, a 7.1mm depth, and a 36.75mm length. Designed for telecom and datacom applications, it operates within a temperature range of -67°C to 221°C and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1734100-4 technical specifications.
General
Boss
Yes (With)
Color
Black
Connector System
Board-to-Board
Contact Current Rating
1A
Contact Material
Bronze
Contact Plating
Gold, Tin, Matte
Contact Post Length
2.54mm
Contact Shape
Square
Depth
7.1mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
36.75mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
40
Number of Ports
1
Number of Positions
40
Number of Rows
4
Orientation
Straight
Package Quantity
54
Packaging
Rail/Tube
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
0.05inch
Plating Thickness
3.81um
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
1.904mm
Series
CHAMP .050 I
Stackable
No
Tail Length
0.099822inch
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1734100-4 Datasheet
Download the complete datasheet for TE Connectivity 1734100-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

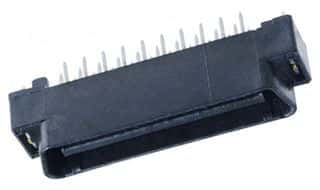

Product Images
