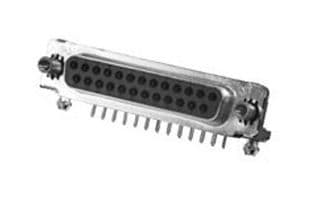

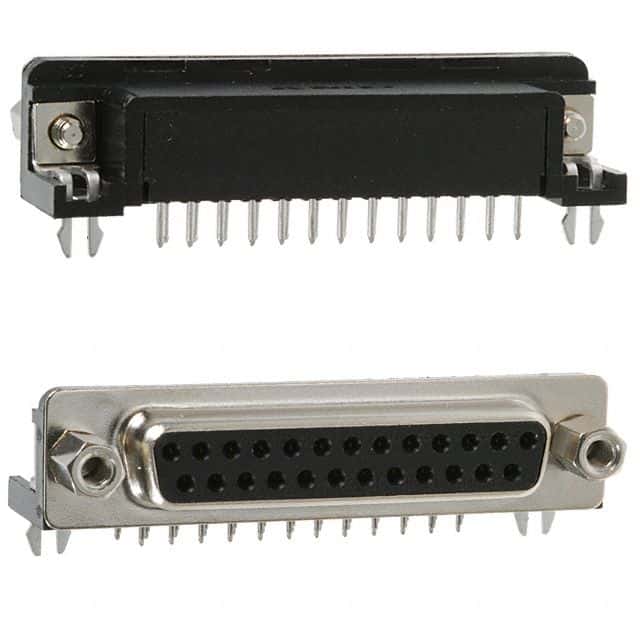

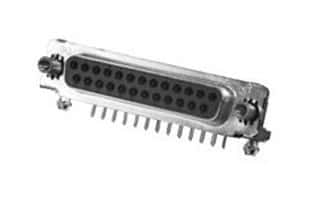

25 Pos Female D-Sub Connector, Right Angle, Gold/Tin Plated, 2A, 250V

TE Connectivity

1734349-1

Name: 1734349-1 TE Connectivity
Brand: TE Connectivity
SKU: 1734349-1

25 Pos Female D-Sub Connector, Right Angle, Gold/Tin Plated, 2A, 250V

Right-angle, female D-subminiature connector with 25 positions and 2 rows. Features gold and tin plated bronze signal contacts with a round shape and 0.125-inch post length. Rated for 2A current and 250V voltage, with a maximum operating temperature of 105°C. Metal body and shell construction in black, with through-hole mounting and solder termination. Includes mating connector lock and retention features.

PackageMetal

Voltage Rating250V

Current Rating2A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1734349-1 technical specifications.

General

Body Material	Metal
Package/Case	Metal
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Shape	Round
Contact Type	Signal
Current Rating	2A
Depth	18.5mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
Lead Free	Lead Free
Length	53.1mm
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	25
Number of Ports	1
Number of Positions	25
Number of Rows	2
Orientation	Right Angle
Package Quantity	50
Packaging	Tray
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	2.77mm
Plating	Nickel
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	No
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	3
Shielding	Unshielded
Termination	Solder
Voltage Rating	250V
Width	12.5mm
