High-density D-subminiature receptacle with 15 positions and 2 rows, featuring right-angle PCB mounting and through-hole termination. This female connector offers signal contacts made of bronze with gold and tin plating, a 2A current rating, and a 250V voltage rating. Constructed with a steel shell and black metal housing, it includes mating connector lock and retention features, with a maximum operating temperature of 105°C.
PackageMetal
Voltage Rating250V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1734355-1 technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.126inch
Contact Shape
Round
Contact Type
Signal
Current Rating
2A
Depth
18.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
39.2mm
Material
Steel
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
15
Number of Ports
1
Number of Positions
15
Number of Rows
2
Orientation
Right Angle
Package Quantity
70
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.77mm
Plating
Nickel
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
SPCC
Shell Size
A
Termination
Solder
Voltage Rating
250V
Width
12.5mm
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 1734355-1 Datasheet
Download the complete datasheet for TE Connectivity 1734355-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

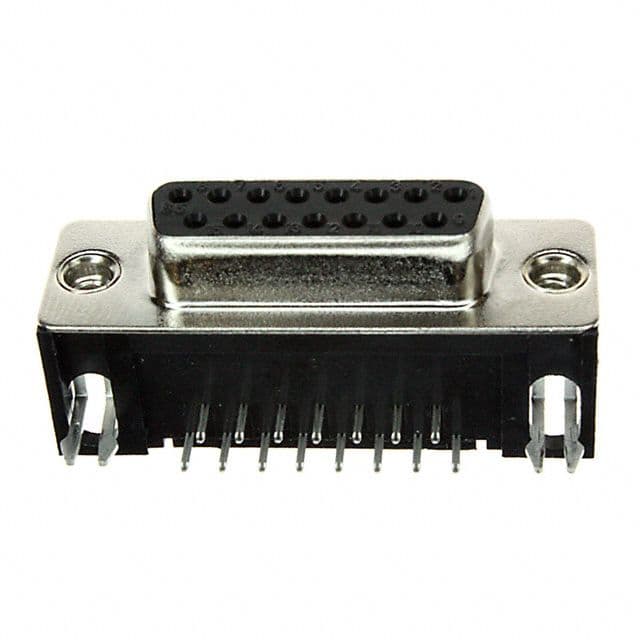

Product Images
