3-position, signal application, wire-to-wire connector with male pin contacts. Features a black PBT body, straight orientation, and free-hanging mount. Operates within a temperature range of -22°C to 221°C, with a 4.8mm pitch and 1.8mm mating tab width. This receptacle is sealable, RoHS compliant, and designed for crimp termination with wire gauges from 16AWG to 24AWG.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 174359-2 technical specifications.
General
| Body Material | PBT |
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Type | Male Pin |
| Depth | 32.5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Height | 0.547inch |
| Housing Color | Black |
| Hybrid Connector | No |
| Lead Free | Lead Free |
| Length | 32.5mm |
| Mating Tab Width | 1.8mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -22°C |
| Mount | Free Hanging |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 4.8mm |
| Polarized | Yes |
| Primary Type | RECEPTACLE |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | EconoSeal™ J Mark II 070 |
| Serviceable | Yes |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 23.1mm |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 174359-2 Datasheet
Download the complete datasheet for TE Connectivity 174359-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

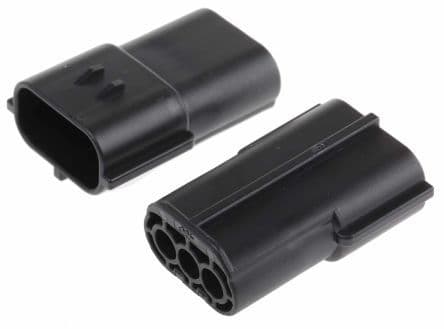

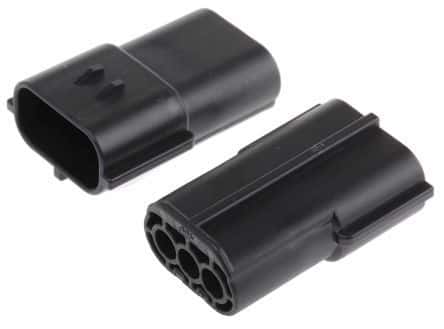

Product Images
