1761606-3

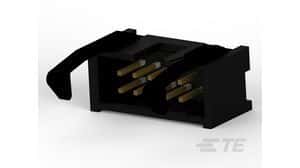

This 10-position, 2-row male pin header features a 2.54mm pitch and 2.54mm row spacing for wire-to-board connections. With a 1A contact current rating and 250V voltage rating, it offers gold/tin contact plating and a bronze contact material. The black PBT housing provides a vertical, through-hole mounting orientation with a 9.19mm height and 9.14mm width. This shrouded header includes mating alignment and retention, operating between -65°C and 105°C.
