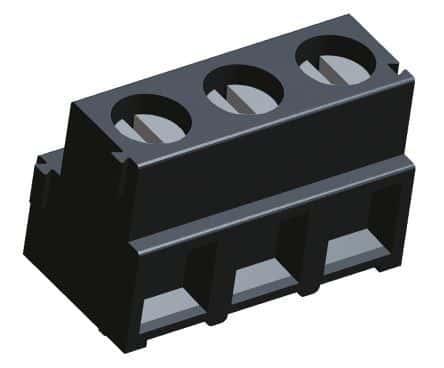

3-position, 1-row, straight, female terminal block for wire-to-board applications. Features 5.08mm pitch, brass contacts with tin plating, and a 10A current rating per contact. Rated for 300V AC, with a maximum operating temperature of 110°C. Housing is black polyamide with UL94 V-0 flammability rating. Includes interlock and side stackable features.
Voltage300V
Current13.5A
Voltage Rating300V
Current Rating10A
Quick Jump:
Technical Specifications
TE Connectivity 1776119-3 technical specifications.
General
Closed End
No (Without)
Color
Black
Connector System
Wire-to-Board
Contact Material
Brass
Contact Plating
Tin
Current
13.5A
Current Rating
10A
Depth
10mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Interlock
Yes (With)
Length
15.24mm
Material
Polyamide
Max Current Rating
10A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Operating Supply Voltage
300V
Orientation
Straight
Package Quantity
200
Packaging
Bulk
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
Yes (With)
Side Stackable
Yes (With)
Tail Length
2.6mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Width
8.2mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1776119-3 Datasheet
Download the complete datasheet for TE Connectivity 1776119-3 to view detailed technical specifications.
