3-position, 1-row, wire-to-board terminal block with 5.08mm pitch. Features straight, through-hole mounting and solder termination. Rated for 10A current and 300V voltage. Constructed with brass contacts plated in tin and a green nylon housing. Compliant with UL and CSA approvals, RoHS, and ELV standards.
Voltage300V
Current10A
Voltage Rating300V
Current Rating10A
Quick Jump:
Technical Specifications
TE Connectivity 1776260-3 technical specifications.
General
| Approvals | UL, CSA |
| Closed End | No (Without) |
| Color | Green |
| Connector System | Wire-to-Board |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 10A |
| Depth | 12.86mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Green |
| Interlock | No (Without) |
| Length | 0.6inch |
| Material | Nylon |
| Max Current Rating | 10A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (AC) | 300V |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole, Panel |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Operating Supply Voltage | 300V |
| Orientation | Straight |
| Package Quantity | 250 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Plating | Steel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | Yes (With) |
| Series | Buchanan |
| Side Stackable | No (Without) |
| Tail Length | 3.1mm |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 15.24mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1776260-3 Datasheet
Download the complete datasheet for TE Connectivity 1776260-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

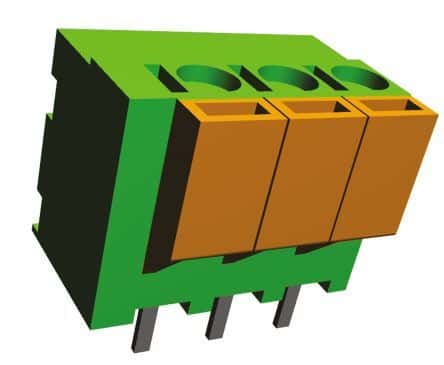

Product Images
