12-position, 4-row wire-to-wire receptacle housing with female socket contacts. Features a straight, free-hanging, cable mount orientation and a 5.08mm row spacing. Black housing constructed from UL94 V-0 rated material, operating within a -67°C to 221°C temperature range and a 250V voltage rating. Designed for 16AWG wire/cable gauge with crimp termination.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 178214-1 technical specifications.
General
Approvals
UL
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Female
Contact Style
Socket
Contact Type
Female Socket
Depth
22.8mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Halogen Free
Halogen Free
Height
0.897inch
Housing Color
Black
Lead Free
Lead Free
Length
12.2mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
12
Number of Positions
12
Number of Rows
4
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
300
Packaging
Bag
Pitch
0.1499inch
Preloaded
No
Primary Type
CONNECTOR
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
5.08mm
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic D-3400
Termination
Crimp
VDE Tested
No
Width
1.263inch
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 178214-1 Datasheet
Download the complete datasheet for TE Connectivity 178214-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

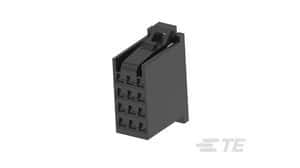

Product Images
