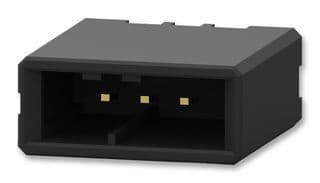

20-position shrouded header with a 3.81mm pitch, designed for wire-to-board applications. Features straight, male tab contacts made of copper alloy with tin plating for mating. Offers a 15A current rating and 250V voltage rating, with a maximum operating temperature of 221°C. This through-hole mounted component has a vertical PCB mounting orientation and a solder termination style.
Voltage Rating250V
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 178328-5 technical specifications.
General
Approvals
UL
Connector System
Wire-to-Board
Contact Current Rating
15A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Rectangular
Contact Style
Straight
Contact Type
Tab
Current Rating
15A
Depth
14.43mm
ELV
Compliant
Flammability Rating
UL94 V-0
Halogen Free
Halogen Free
Height
0.85inch
Housing Color
Black
Insulation Color
Black
Insulation Material
Glass
Lead Free
Lead Free
Length
48.29mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
20
Number of Ports
1
Number of Positions
20
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
10
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
0.149inch
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic D-3100
Shielding
Unshielded
Shrouded
Yes (With)
Strain Relief
No (Without)
Tail Length
3.8mm
Termination
Solder
VDE Tested
No
Voltage Rating
250V
Width
0.568inch
Compliance
RoHS
Compliant
