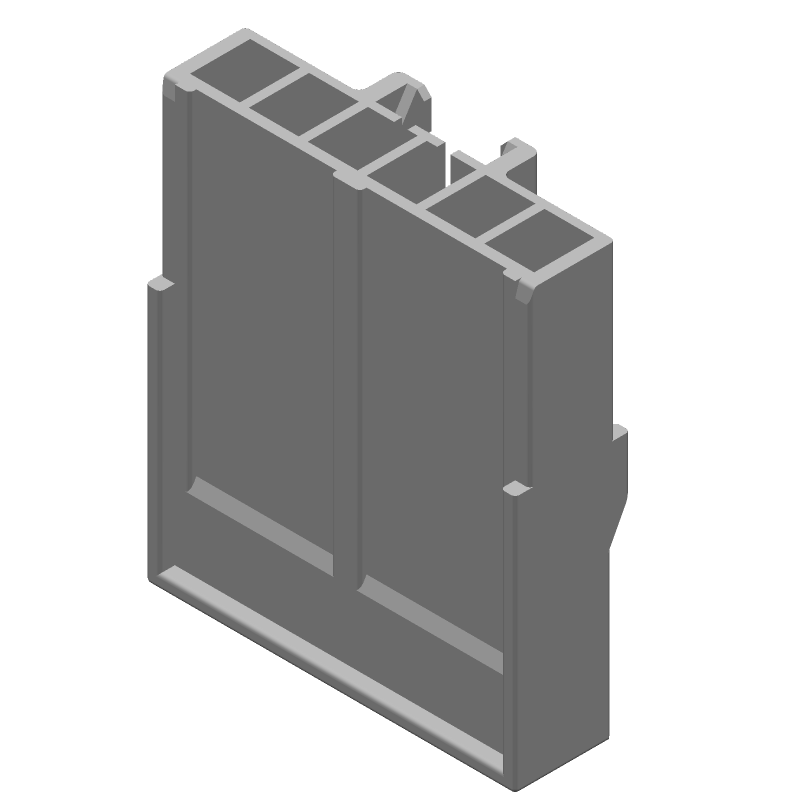

6-position, straight, cable mount wire housing with a 3.96mm pitch. This natural colored, female connector system features a copper alloy tab contact type with a 7A current rating. Designed for wire-to-wire applications, it offers mating alignment and mating retention, operating within a temperature range of -22°C to 221°C. The housing is UL94 V-0 flammability rated and RoHS compliant.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 178480-1 technical specifications.
General
| Color | Natural |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 7A |
| Contact Material | Copper Alloy |
| Contact Retention | No (Without) |
| Contact Type | Tab |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 8.4mm |
| Housing Color | Natural |
| Lead Free | Not Applicable |
| Length | 1.14inch |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -22°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| PCB Mount Retention | Without |
| Pitch | 0.156inch |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal Power |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
