16-position, straight male circular connector with crimp termination. Features a thermoplastic black body, IP65 rating, and a 13A current rating. Designed for wire-to-wire connectivity with male contacts and mating alignment/retention. Operating temperature range from -55°C to 105°C, with UL94 V-0 flammability.
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 182642-1 technical specifications.
General
| Body Material | Thermoplastic |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Protection | Yes (With) |
| Contact Type | CRIMP |
| Current Rating | 13A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 16 |
| Number of Ports | 1 |
| Number of Positions | 16 |
| Number of Signal Positions | 16 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Primary Type | CONNECTOR |
| Radiation Hardening | No |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | CPC Series 1 |
| Shell Size | 17 |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | No |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 182642-1 Datasheet
Download the complete datasheet for TE Connectivity 182642-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

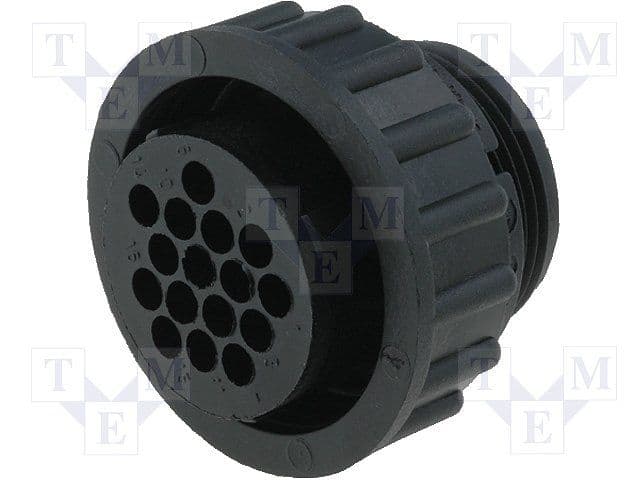

Product Images
