This M12 circular connector system features a 5-pin male plug with gold-plated brass pin contacts, designed for sensor applications. The 5-meter cable assembly utilizes a black PVC jacket and insulation, with a 5.5mm overall diameter and 22AWG conductors. Rated for 5A current and up to 60V AC / 6.06kV DC, it offers IP67 environmental protection, ensuring waterproof and dust-tight performance. Operating within a temperature range of -20°C to 80°C, this free-hanging assembly is RoHS compliant.
Voltage Rating500V
Current Rating5A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1838252-3 technical specifications.
General
Color
Black
Conductor Diameter
0.645mm
Connector Type A
Plug, M12, Circular
Connector Type B
Wire Leads
Contact Material
Brass
Contact Plating
Gold
Contact Type
Pin
Current Rating
5A
Environmental Protection
Yes (With)
Gender
Male
Insulation Material
PVC
Jacket Material
PVC
Length
5m
Max Current Rating
5A
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
60V
Max Voltage Rating (DC)
6.06kV
Mount
Free Hanging
Number of Conductors
5
Number of Contacts
5
Number of Positions
5
Package Quantity
20
Packaging
Bag
Primary Type
Sealed
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
M12
Shielding
Unshielded
Voltage Rating
500V
Wire/Cable Color
Black
Wire/Cable Diameter
5.5mm
Wire/Cable Gauge
22AWG
Wire/Cable Type
PVC
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1838252-3 Datasheet
Download the complete datasheet for TE Connectivity 1838252-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

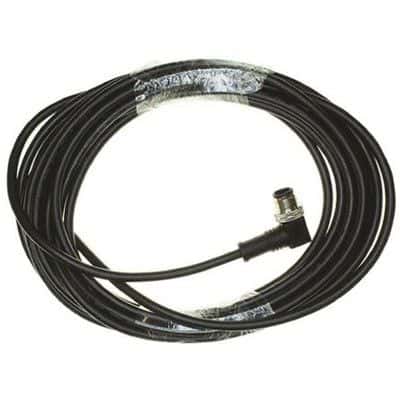

Product Images
